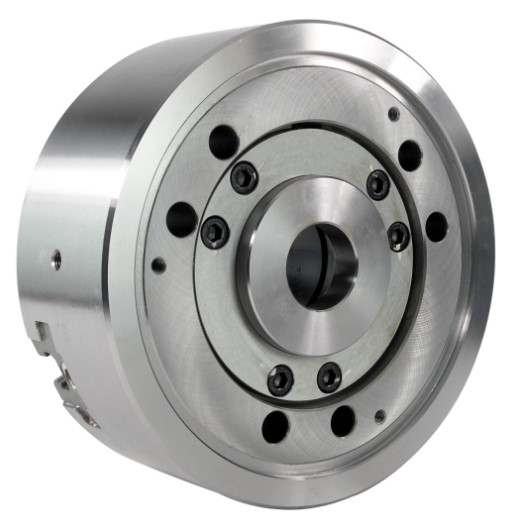

Kitagawa B206 Thru-Hole Power Chuck
only chuck body
UVP: 2.398,00 1.918,00 €
just 1.918,00 €
just 1.918,00 €
More Information
Description & technical details
54 mm three jaw power chuck with 75 mm through hole and max. speed of 4200 rpm
Low centrifugal force at high speeds.
Interchangble with BR10, BB210.
Grip Range (mm): 254 max, > 31 min.
Jaw Stroke diameter (mm): 8,8
Max Gripping Force (kN):111,0
Master Jaw Serration: 1,5mm x 60°
Jaw Stroke diameter (mm): 8,8
Max Gripping Force (kN):111,0
Master Jaw Serration: 1,5mm x 60°
Moment of intertia: 0,315 kg.m2
Matching cylinder: S1875
T-Nut (mm): 16H8/h8
Downloads
Matching accessories
Chuck Adaptor KITAGAWA for BR10 / BB210 / B210 Futter
Precision ground back plate to suit a variety of spindlenose A2/8"

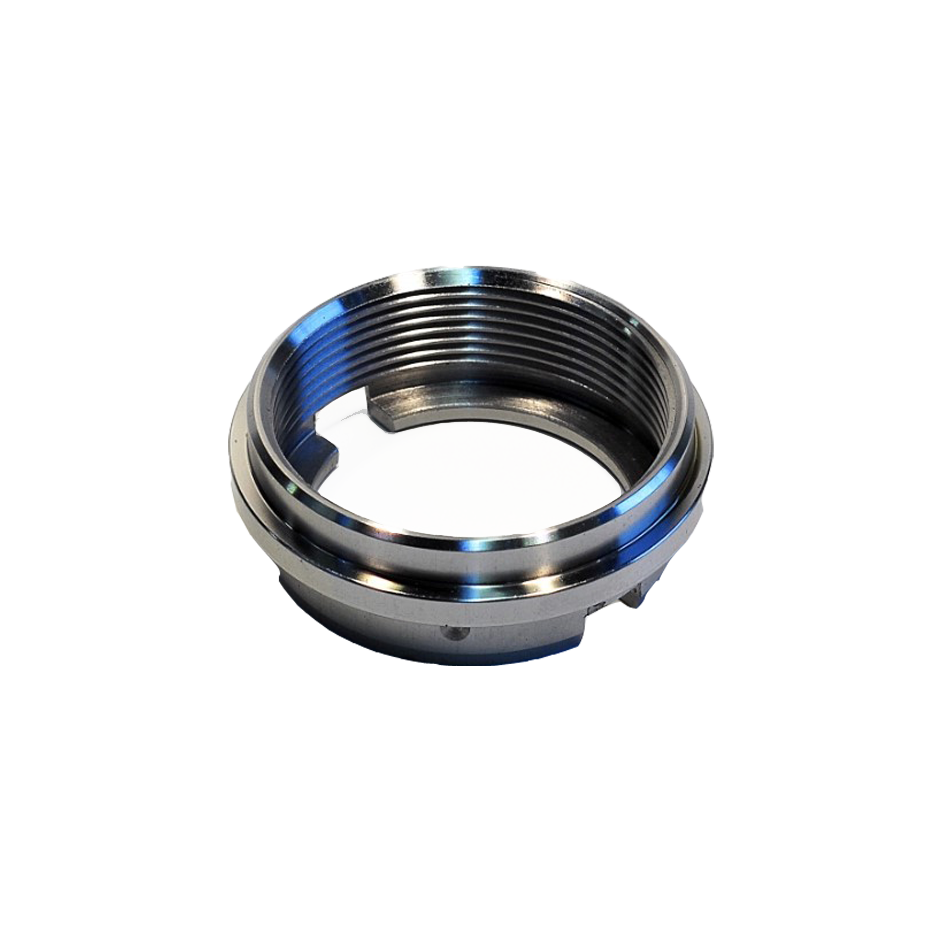

Drawnut KITAGAWA for B210 chuck
External thread B210 chuck - internal thread blank
Hart Top Jaws BR10 / BB210 / B210
for Chucktype BR10 / BB210 / B210
Kitagawa Grease Pro
1000 g
Kitagawa Grease
Cartridge 400g
KITAGAWA Gun K5 Pro
also for cartridge

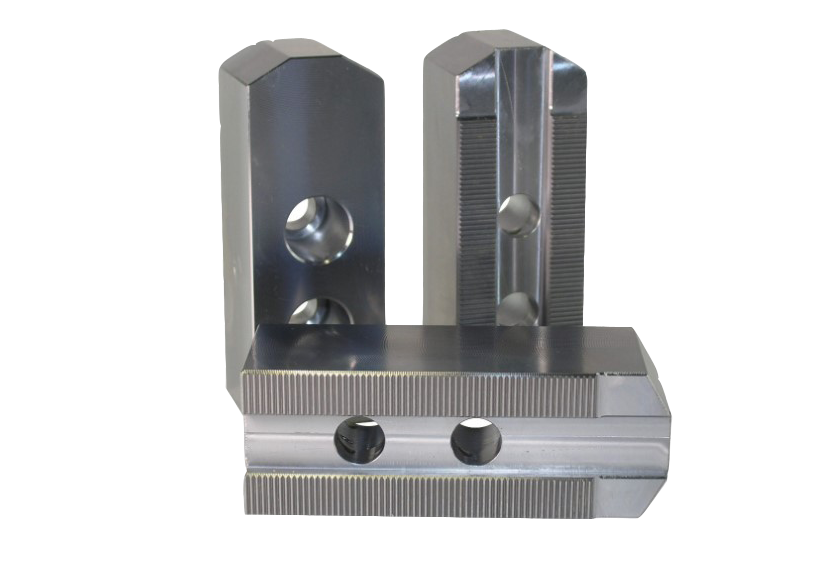

Soft Top Jaws for BR10 / BB210 / B210
for Chucktype BR10 / BB210 / B210
Soft Top Jaws for BR10 / BB210 / B210
for Chucktype BR10 / BB210 / B210
t-nut BR10 / BB210 / B210
for Chucktype BR10 / BB210 / B210
