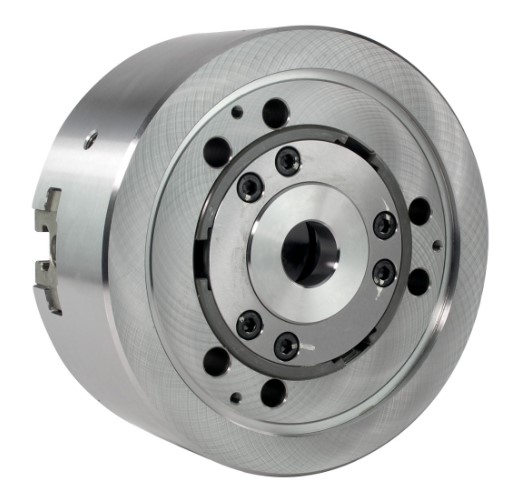

Kitagawa B206 Thru-Hole Power Chuck

only chuck body
UVP: 2.053,00 1.642,00 €
just 1.642,00 €

1 pcs. in Stock

More Information
Description & technical details
210 mm three jaw power chuck with 52 mm through hole and max. speed of 5000 rpm
Suitable for workpiece transfer with sub spindle.
Low centrifugal force at high speeds.
Interchangble with BR08, BB208.
Grip Range (mm): 210 max, > 13 min.
Jaw Stroke diameter (mm): 7,4
Max Gripping Force (kN):86,0
Master Jaw Serration: 1,5mm x 60°
Moment of intertia: 0,170 kg.m2
Matching cylinder: S1552
T-Nut  (mm): 14H8/h8


​

Matching accessories

1 pcs. in Stock
Back Plate 8 for chuck A6"
Precision ground back plate to suit a variety of spindlenose A2/6"
UVP: 347,00 278,00 €
 278,00 €
1 pcs. in Stock

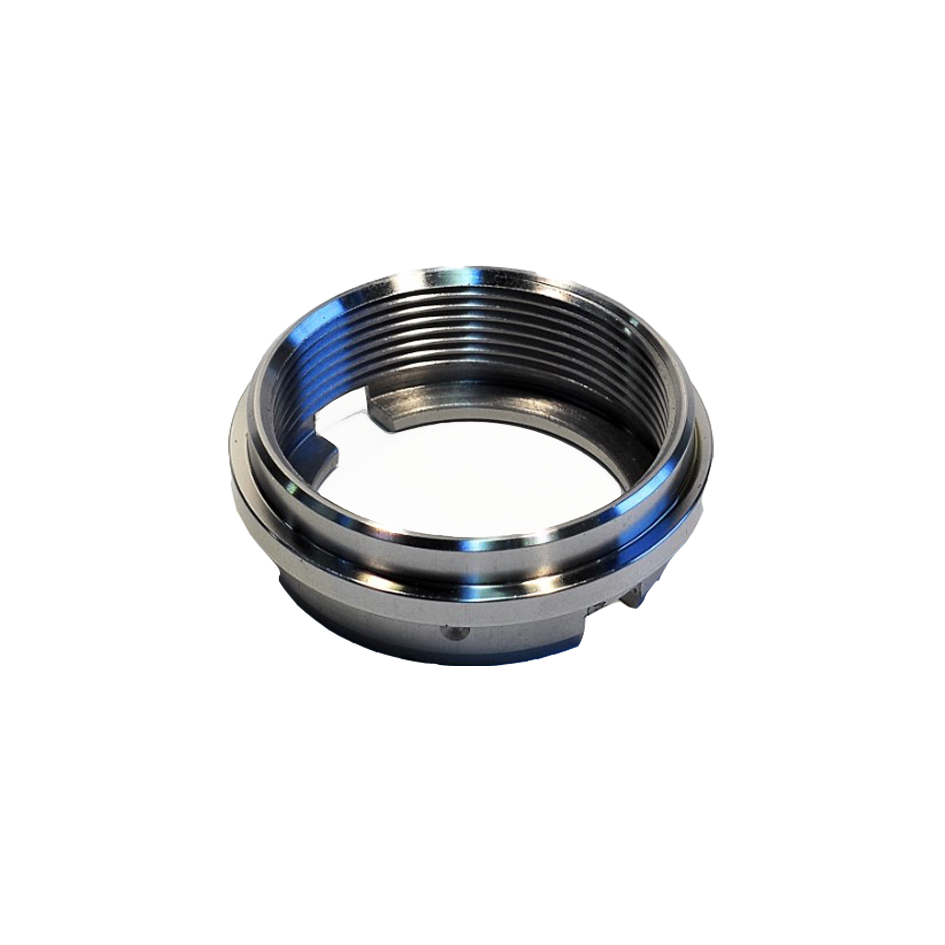

Drawnut KITAGAWA for B208 chuck
External thread B208 chuck - internal thread blank
UVP: 126,00 101,00 €
 101,00 €
Not in stock, delivery time about 2 days
Hart Top Jaws BR08 / BB208 / B208
for Chucktype BR08 / BB208 / B208
UVP: 431,00 345,00 €
 345,00 €
3 pcs. in Stock
Kitagawa Grease Pro
1000 g
UVP: 100,00 80,00 €
 80,00 €
10 pcs. in Stock
Kitagawa Grease
Cartridge 400g
UVP: 42,00 34,00 €
 34,00 €
Not in stock, delivery time about 3 days
KITAGAWA Gun K16 mini

UVP: 45,00 36,00 €
 36,00 €
Not in stock, delivery time about 3 days
KITAGAWA Gun K5 Pro
also for cartridge
UVP: 80,00 64,00 €
 64,00 €
10 pcs. in Stock
Soft Top Jaws for BR08 / BB208 / B208
for Chucktype BR08 / BB208 / B208
UVP: 47,30 38,00 €
 38,00 €
10 pcs. in Stock
Soft Top Jaws for BR08 / BB208 / B208
for Chucktype BR08 / BB208 / B208
UVP: 47,30 38,00 €
 38,00 €
1 pcs. in Stock
t-nut BR08 / BB208 / B208
for Chucktype BR08 / BB208 / B208
UVP: 158,00 126,00 €
 126,00 €
""
""
